NC1095 Weber Q Grill Mount

[jonjenk]

I wanted to add a propane grill to my NC1095.  Based on my past experience with Magma grills (poor heat control, flare ups...) I decided to add a Weber Q.  The Weber Q is well regarded on lots of boating sites.

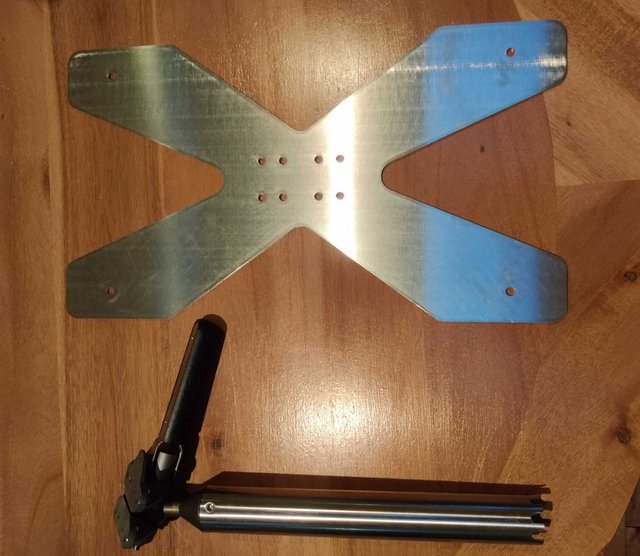

In order to fit the Weber Q to a Magma LeveLock rod holder mount I needed to design a mounting plate.  I was able to get the plate laser cut online for only $65 in 10ga 304SS.  The end result came out really well.  I've attached the DXF file for the mounting plate if anyone else needs it.  You should be able to get any online laser cutting place to produce one from the drawing.  The whole thing is held together with 1/4" fasteners.

Editor note: You can view the CAD - DXF file with a viewer such as: products.aspose.app/cad/viewer/dxf

Attachments:

WeberQGrillMount.dxf (179.55 KB)

[ea]

Sept 23, 2021 18:52:09 GMT jonjenk said:

I wanted to add a propane grill to my NC1095.  Based on my past experience with Magma grills (poor heat control, flare ups...) I decided to add a Weber Q.  The Weber Q is well regarded on lots of boating sites.

In order to fit the Weber Q to a Magma LeveLock rod holder mount I needed to design a mounting plate.  I was able to get the plate laser cut online for only $65 in 10ga 304SS.  The end result came out really well.  I've attached the DXF file for the mounting plate if anyone else needs it.  You should be able to get any online laser cutting place to produce one from the drawing.  The whole thing is held together with 1/4" fasteners.

Thank you

[robert1]

I have owned one of the original Q’s as shown in the pictures it has never let me down. This grill will also be easier to clean than the original cast iron grate. Webber makes the best for the price!

[ck]

Where did you have it cut?


PS. Thanks for sharing!

[jonjenk]

Jan 1, 2022 21:26:33 GMT ck said:

Where did you have it cut?


PS. Thanks for sharing!

I had mine cut by oshcut.com

It was less than $100 in 304SS including shipping.

[drakesmith]

jonjenk: Thanks for your great idea and for posting that .dxf file.

I just received the plate in the same gauge and material as yours from OSH Cut for $111.47 including shipping (not surprised the price has gone up).

The eight holes fit the Magma LeveLock perfectly, but there are no holes on the base of my Weber Q grill, so the four holes on the arms of the adapter do not line up with anything. Does your grill have mounting holes on its base?

[alexrom]

jonjenk you're the man! Thank you
